09D HVF Throttle Body Elbow [Fiesta ST Mk8/8.5 | Puma ST 1.5 | Focus ST Line 1.5 | Kuga 1.5]
09D HVF Throttle Body Elbow [Fiesta ST Mk8/8.5 | Puma ST 1.5 | Focus ST Line 1.5 | Kuga 1.5]
09D HVF Throttle Body Elbow [Fiesta ST Mk8/8.5 | Puma ST 1.5 | Focus ST Line 1.5 | Kuga 1.5]
09D HVF Throttle Body Elbow [Fiesta ST Mk8/8.5 | Puma ST 1.5 | Focus ST Line 1.5 | Kuga 1.5]
Sold out

FEN002AA

09D HVF Throttle Body Elbow [Fiesta ST Mk8/8.5 | Puma ST 1.5 | Focus ST Line 1.5 | Kuga 1.5]

Sold Out

Product Overview

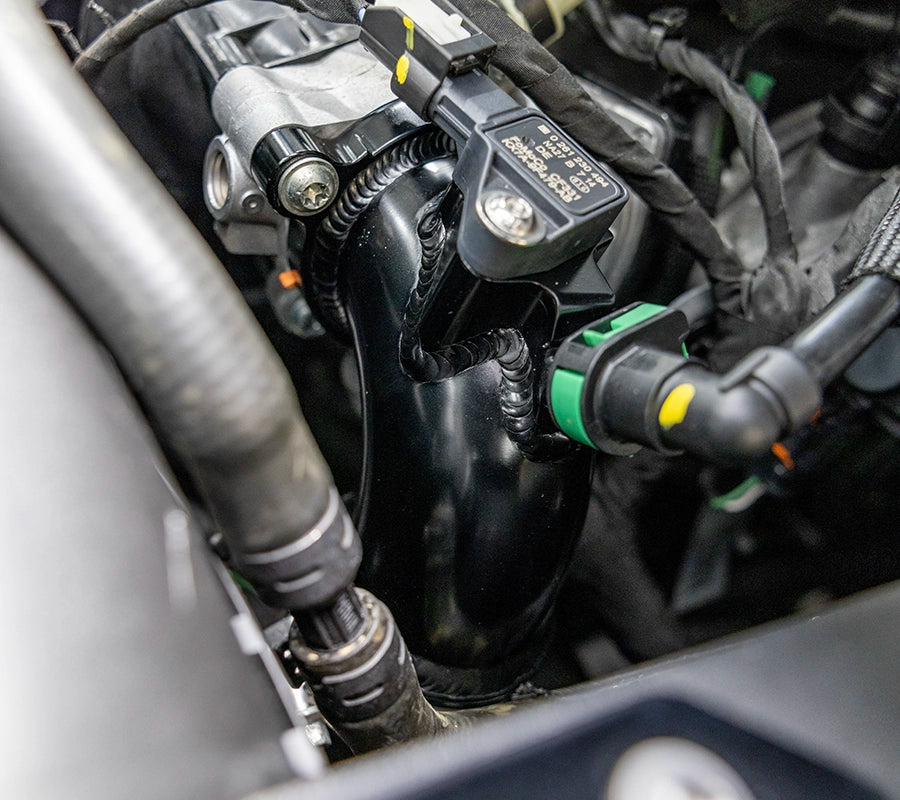

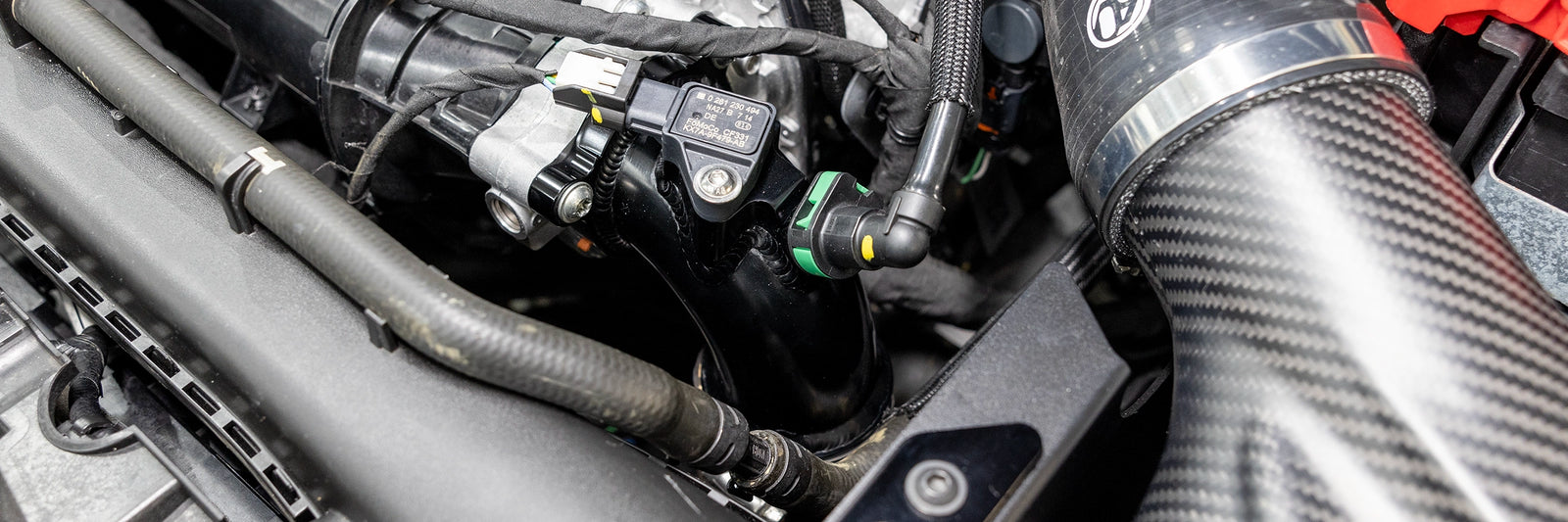

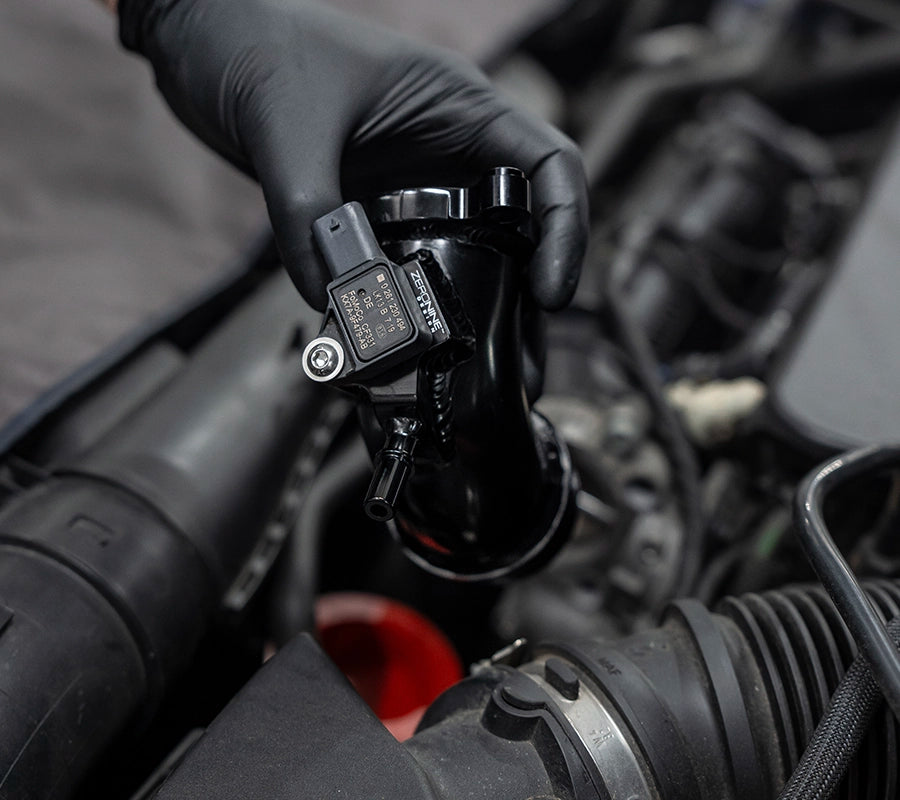

The 09Design HVF Turbo Elbow is a high flow replacement for the restrictive factory throttle body elbow found on Ford 1.5 EcoBoost models. By removing internal bottlenecks and increasing internal volume, it promotes smoother airflow into the engine, supporting improved efficiency, response, and future performance upgrades.

KEY FEATURES AND ADVANTAGES

KEY FEATURES AND ADVANTAGES

  • Increased volume and improved flow removes the internal restriction present in the OEM throttle body elbow
  • Larger, smooth wall internal bore improves airflow dynamics and reduces turbulence
  • Typical airflow gains exceed 25% compared to the factory component based on back-to-back testing
  • Direct replacement part without the need for any modifications
  • Black anodised aluminium construction improves durability, corrosion resistance, and engine bay appearance
  • Retains all factory sensor connections and hose interfaces for OEM level fitment
  • Increased volume and improved flow removes the internal restriction present in the OEM throttle body elbow
  • Larger, smooth wall internal bore improves airflow dynamics and reduces turbulence
  • Typical airflow gains exceed 25% compared to the factory component based on back-to-back testing
  • Direct replacement part without the need for any modifications
  • Black anodised aluminium construction improves durability, corrosion resistance, and engine bay appearance
  • Retains all factory sensor connections and hose interfaces for OEM level fitment

TECHNICAL DATA

TECHNICAL DATA

  • Mandrel formed alloy body combined withCNC machined flanges, expertly welded together to form the final assembly
  • Gloss black anodised for corrosion resistance and improved aesthetics
  • Enlarged smooth wall internal bore to reduce restriction and improve air flow and speed
  • Mandrel formed alloy body combined withCNC machined flanges, expertly welded together to form the final assembly
  • Gloss black anodised for corrosion resistance and improved aesthetics
  • Enlarged smooth wall internal bore to reduce restriction and improve air flow and speed

FITMENT

FITMENT

Compatible with the following models:

  • Ford Fiesta ST Mk8 (2018–2022)
  • Ford Fiesta ST Mk8.5 (2022–present)
  • Ford Puma ST 1.5 (2019-2023)
  • Mk4 Focus ST-Line 1.5 (2016-2025)
  • Kuga 1.5

Notes:

The elbow installs directly in place of the factory throttle body elbow and requires no permanent modification. Always ensure all clamps and connections are correctly secured after installation

Compatible with the following models:

  • Ford Fiesta ST Mk8 (2018–2022)
  • Ford Fiesta ST Mk8.5 (2022–present)
  • Ford Puma ST 1.5 (2019-2023)
  • Mk4 Focus ST-Line 1.5 (2016-2025)
  • Kuga 1.5

Notes:

The elbow installs directly in place of the factory throttle body elbow and requires no permanent modification. Always ensure all clamps and connections are correctly secured after installation

Frequently Asked Questions (FAQs)

It removes airflow restriction in the factory intake path, allowing the turbocharger and engine to breathe more efficiently.

You may notice mildly improved throttle response. The biggest benefits are typically realised when combined with our HVF Charge Pipe Kit, HVF induction Kit and our tailored software.

No. The elbow also functions perfectly on a standard calibration.

Yes. It is designed as a direct replacement and retains all factory sensors and hose connections.
