OUR TOP FIVE FIESTA ST MODIFICATIONS

The Mk8 / Mk8.5 Fiesta ST is an outstanding hot-hatch that delivers exactly what you'd expect in terms of performance, go-kart handling and fun by the bucketload.

However, as good as it is out-of-the-box, there's still so much more that can be gained from a few choice upgrades - here's our pick of the best 5 upgrades that every Fiesta ST owner should be giving consideration to.

POWERTRAIN ESSENTIALS

POWERTRAIN ESSENTIALS

#1 Stage 01 SOFTWARE

#1 Stage 01 SOFTWARE

Price: £550

As with all (ICE) Internal Combustion Engine-powered vehicles, the OE calibration is typically restricted by both emissions regulation and what the base engine team determine is the maximum safe power and torque output - based on their own internal sign-off limits.

The reality, is these limits were often put in place years, or even decades before and don't always test an engine, or the calibration performance in a true 'real world' scenario, as used by you (their tests are often much harsher than reality).

Whether the limiting factor is in-cylinder pressures, turbo speed, or something else, what you get from the forecourt is often a restricted form of what's reliably possible to extract - and this is very much the case with the 3-cylinder 1.5-litre Dragon engine found in the Fiesta ST.

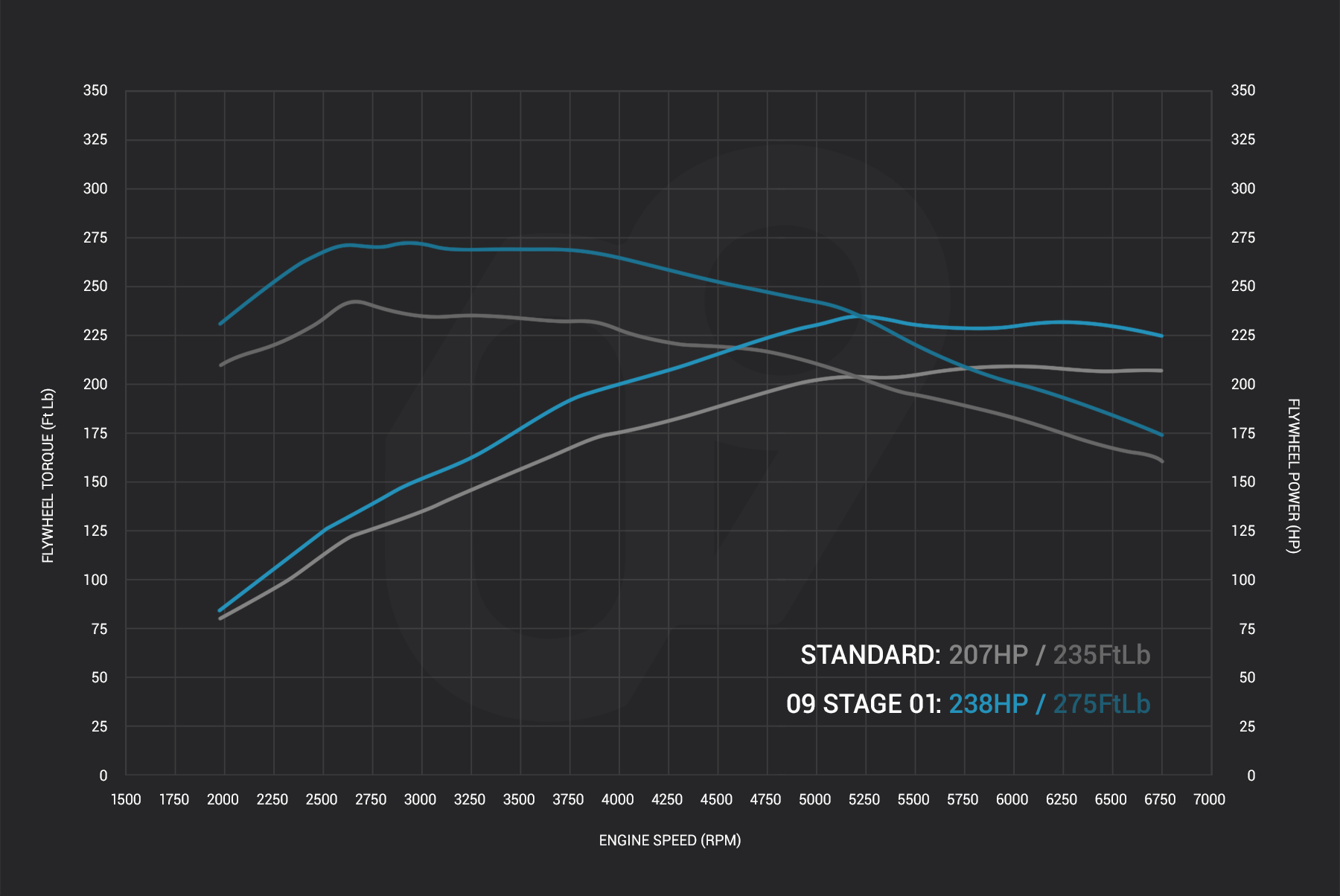

Optimising the headway for performance, combined with an improvement in airflow (in the form of a high-flow panel filter, or induction kit), a genuine peak gain of 30bhp and 40Ftlb is available in stage 01 format and substantially more with other supporting software and hardware.

Regardless of the level of calibration you end up with, you should expect a more responsive vehicle that allows for safer overtaking, is generally more drivable day-to-day and of course, is a lot more fun when properly using the extra performance on road, or track.

Extra functionality can also be added into the base strategy (the governing structure of what can and can't be done within the software running on your ECU), to allow for things like more (or less) pops and bangs, sharper pedal maps, higher rpm limits and with devices like our FLASHlink (which uses a Bluetooth OBD adaptor and an app running your smartphone to make changes on-the-fly), you can also install anti-theft and specific fuel-based performance calibrations, plus a whole lot more besides.

The extra performance, character and ultimately overall enjoyment that can be instantly added to the base vehicle makes a stage 01 calibration our #1 essential upgrade.

Price: £550

As with all (ICE) Internal Combustion Engine-powered vehicles, the OE calibration is typically restricted by both emissions regulation and what the base engine team determine is the maximum safe power and torque output - based on their own internal sign-off limits.

The reality, is these limits were often put in place years, or even decades before and don't always test an engine, or the calibration performance in a true 'real world' scenario, as used by you (their tests are often much harsher than reality).

Whether the limiting factor is in-cylinder pressures, turbo speed, or something else, what you get from the forecourt is often a restricted form of what's reliably possible to extract - and this is very much the case with the 3-cylinder 1.5-litre Dragon engine found in the Fiesta ST.

Optimising the headway for performance, combined with an improvement in airflow (in the form of a high-flow panel filter, or induction kit), a genuine peak gain of 30bhp and 40Ftlb is available in stage 01 format and substantially more with other supporting software and hardware.

Regardless of the level of calibration you end up with, you should expect a more responsive vehicle that allows for safer overtaking, is generally more drivable day-to-day and of course, is a lot more fun when properly using the extra performance on road, or track.

Extra functionality can also be added into the base strategy (the governing structure of what can and can't be done within the software running on your ECU), to allow for things like more (or less) pops and bangs, sharper pedal maps, higher rpm limits and with devices like our FLASHlink (which uses a Bluetooth OBD adaptor and an app running your smartphone to make changes on-the-fly), you can also install anti-theft and specific fuel-based performance calibrations, plus a whole lot more besides.

The extra performance, character and ultimately overall enjoyment that can be instantly added to the base vehicle makes a stage 01 calibration our #1 essential upgrade.

#2 HIGH-FLOW AIR INTAKE

#2 HIGH-FLOW AIR INTAKE

Price range: £48-£465

Improving the efficiency of your air intake gives multiple improvements; from an enhanced intake sound, to a reduced pressure drop across the intake system - which means your engine (and turbo) doesn’t have to work so hard to make the same level of power and torque than it would otherwise.

A high-flow panel filter offers a cheap way of providing a small airflow improvement, induction noise boost and power gain. The airbox doesn’t even require tools to access the filter on the Fiesta ST, so this truly is a DIY swap that anyone can do themselves.

Once the airflow required for circa 250bhp / 375FtLb is exceeded, even an uprated panel filter option becomes a restriction that gets worse as the power and torque increases exponentially beyond that.

If you’re planning on upgrading to Stage 02 (or beyond) and you want to achieve and maintain the maximum power and torque output possible, you’ll need to look at upgrading to a high-flow induction kit.

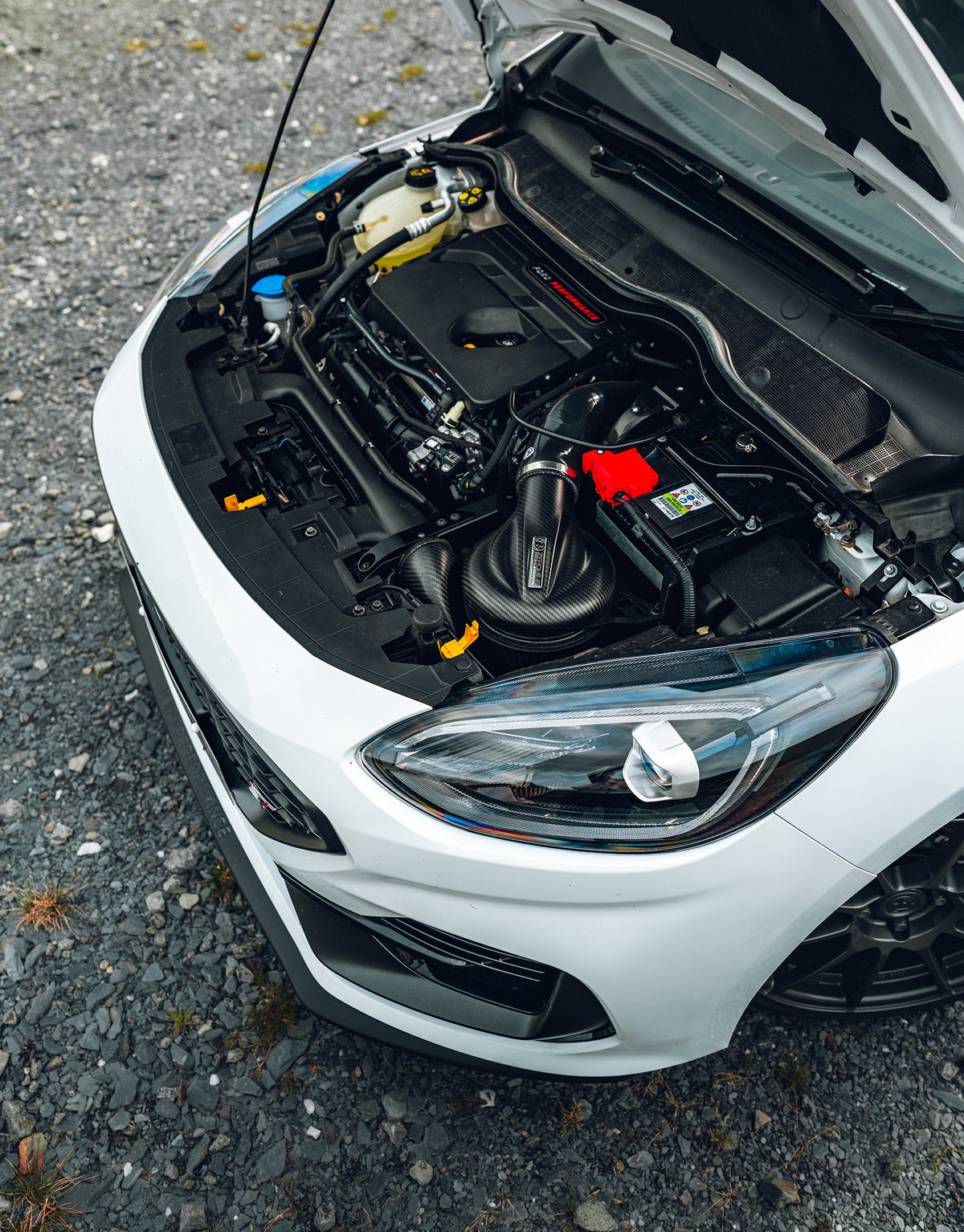

Open cone setups can be prone to (power robbing) heatsoak, which is why rather than a simple filter fitted to an aluminium pipe, our induction kit solution offers a semi-enclosed airbox setup, complete with a carbon fibre filter housing and air-feed.

Although more difficult to design and manufacture, the carbon fibre material also boasts an inherent thermal enhancement that stops unwanted heat transfer, maintaining peak power for longer - and offering a unique induction noise that other kits can’t compete with.

Whichever induction kit you opt for, make sure it’s properly designed to provide optimal airflow, whilst preventing as much heatsoak as possible - so avoid an open filter simply fitted to a metal pipe, unless you're just after a noise increase and a loss of performance!

Price range: £48-£465

Improving the efficiency of your air intake gives multiple improvements; from an enhanced intake sound, to a reduced pressure drop across the intake system - which means your engine (and turbo) doesn’t have to work so hard to make the same level of power and torque than it would otherwise.

A high-flow panel filter offers a cheap way of providing a small airflow improvement, induction noise boost and power gain. The airbox doesn’t even require tools to access the filter on the Fiesta ST, so this truly is a DIY swap that anyone can do themselves.

Once the airflow required for circa 250bhp / 375FtLb is exceeded, even an uprated panel filter option becomes a restriction that gets worse as the power and torque increases exponentially beyond that.

If you’re planning on upgrading to Stage 02 (or beyond) and you want to achieve and maintain the maximum power and torque output possible, you’ll need to look at upgrading to a high-flow induction kit.

Open cone setups can be prone to (power robbing) heatsoak, which is why rather than a simple filter fitted to an aluminium pipe, our induction kit solution offers a semi-enclosed airbox setup, complete with a carbon fibre filter housing and air-feed.

Although more difficult to design and manufacture, the carbon fibre material also boasts an inherent thermal enhancement that stops unwanted heat transfer, maintaining peak power for longer - and offering a unique induction noise that other kits can’t compete with.

Whichever induction kit you opt for, make sure it’s properly designed to provide optimal airflow, whilst preventing as much heatsoak as possible - so avoid an open filter simply fitted to a metal pipe, unless you're just after a noise increase and a loss of performance!

Video shown features vehicle running 09D carbon induction kit, Stage 02 calibration and GPF-back exhaust.

Video shown features vehicle running 09D carbon induction kit, Stage 02 calibration and GPF-back exhaust.

#3 QUICKSHIFT

#3 QUICKSHIFT

Price: £100

The OE shifter-throw isn’t bad, but it can feel a little long, especially when racing through the gears during some more spirited fast-road or track driving.

A whole host of shifter solutions are available, but almost without exception, they simply use a bolt-on aluminium block to the OE shifter arm in a bid to (often crudely) relocate the shifter cable‘s pin - and in-turn change the percentage reduction in shifter movement required to change gear.

At best you get a shorter throw at the sacrifice of a more notchy change - and at worst the cable end can pop off, or depending on the design, the bolt-on section can come apart - either way potentially leaving you unable to change gear!

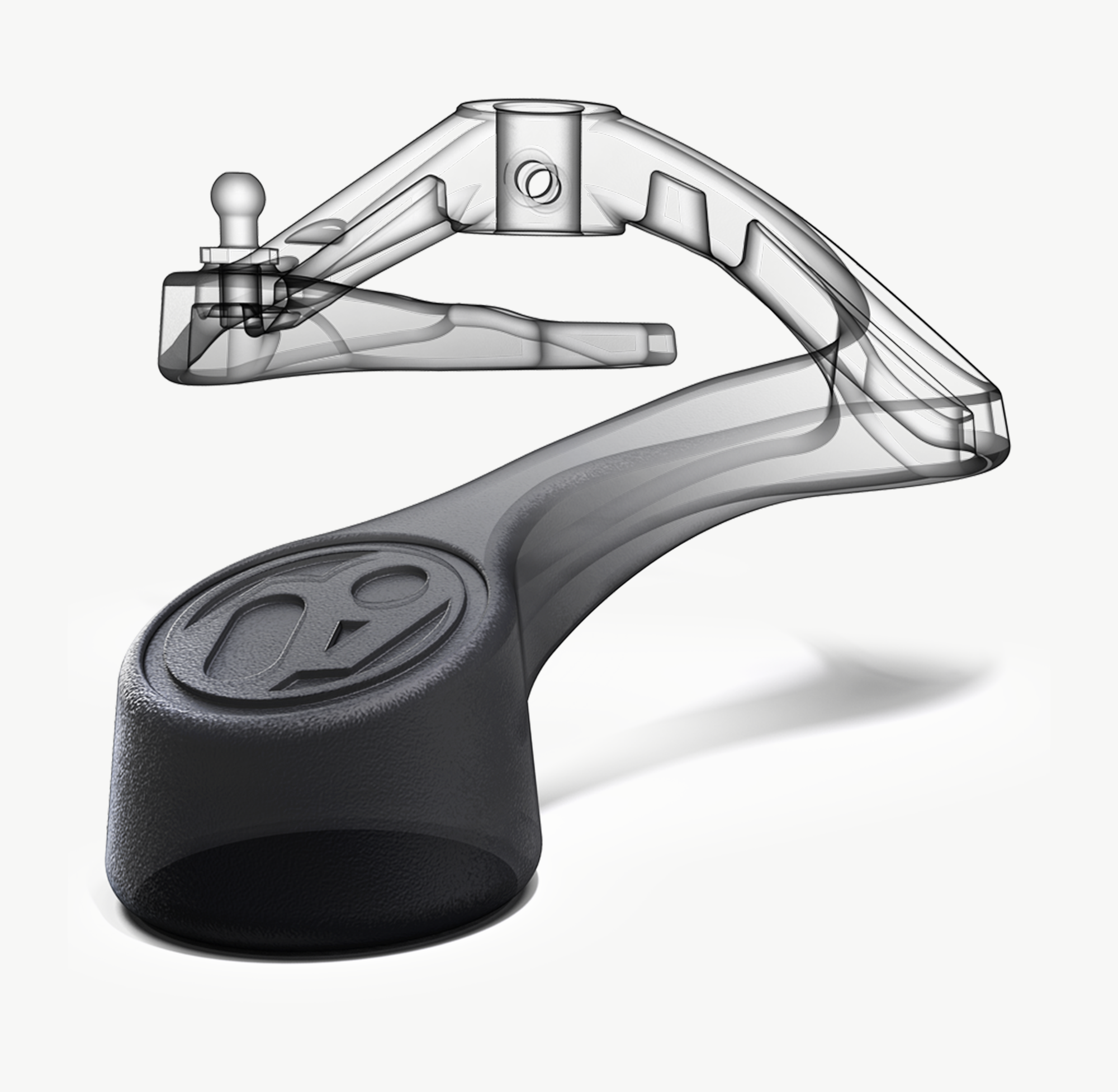

Conversely, by redesigning the whole shift arm as we have, you can not only change the throw ratio without needing to raise the ball pin and shifter cable, you can also profile the mass and ensure you put the weight you want, exactly where you want it; so as well as the shorter throw, you can actually benefit from an enhanced sensation of the gear being pulled into place and a smoother gear change - the perfect balance!

Price: £100

The OE shifter-throw isn’t bad, but it can feel a little long, especially when racing through the gears during some more spirited fast-road or track driving.

A whole host of shifter solutions are available, but almost without exception, they simply use a bolt-on aluminium block to the OE shifter arm in a bid to (often crudely) relocate the shifter cable‘s pin - and in-turn change the percentage reduction in shifter movement required to change gear.

At best you get a shorter throw at the sacrifice of a more notchy change - and at worst the cable end can pop off, or depending on the design, the bolt-on section can come apart - either way potentially leaving you unable to change gear!

Conversely, by redesigning the whole shift arm as we have, you can not only change the throw ratio without needing to raise the ball pin and shifter cable, you can also profile the mass and ensure you put the weight you want, exactly where you want it; so as well as the shorter throw, you can actually benefit from an enhanced sensation of the gear being pulled into place and a smoother gear change - the perfect balance!

CHASSIS ESSENTIALS

CHASSIS ESSENTIALS

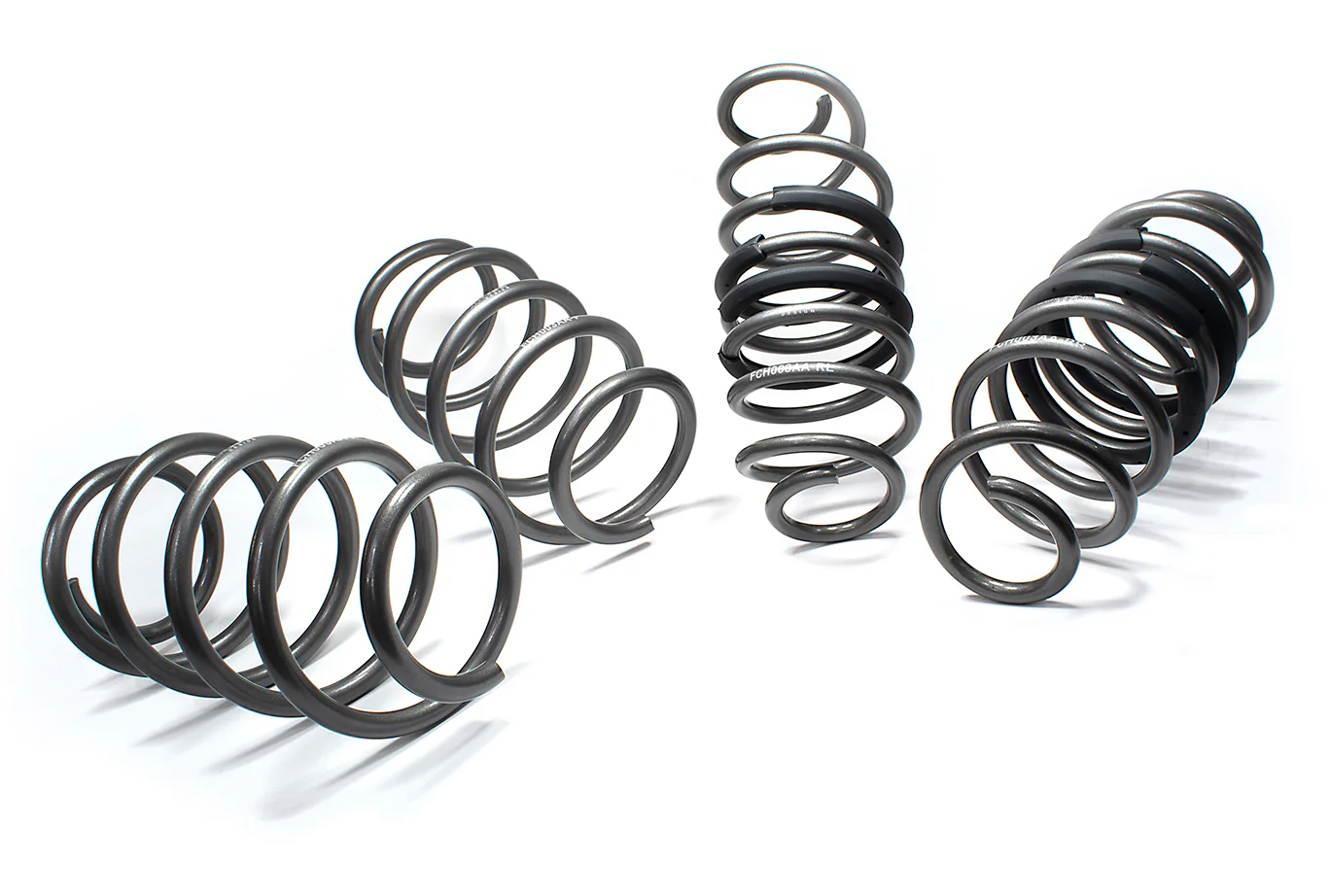

#4 PERFORMANCE SPRINGS

#4 PERFORMANCE SPRINGS

Price: £124

Ford had eight generations and nearly 50-years of evolution to perfect the Fiesta's fun and sporty characteristics - so it's not surprising that the Mk8 and Mk8.5 offers plenty of smiles per mile.

As always though, the OE rulebook means that the optimal setup for performance and the enthusiast has to be balanced with the mass-market and that's where a set of performance lowering springs, albeit with the right poundage and that maintain the inherent torque-vectoring setup, allow you to lower the vehicle's centre of gravity, enhance turn-in and provide a more responsive overall chassis, without compromising on ride quality - critical, for the numerous owners that use their cars on a daily basis.

Go too low with the OE damper and you'll not only risk front bumper scuffs, you'll also promote 'crashing' and poor dynamic control where there's minimal damper travel left under compression - you'll also have eyes on stalks trying to dodge the potholes that litter the roads - in the UK, certainly.

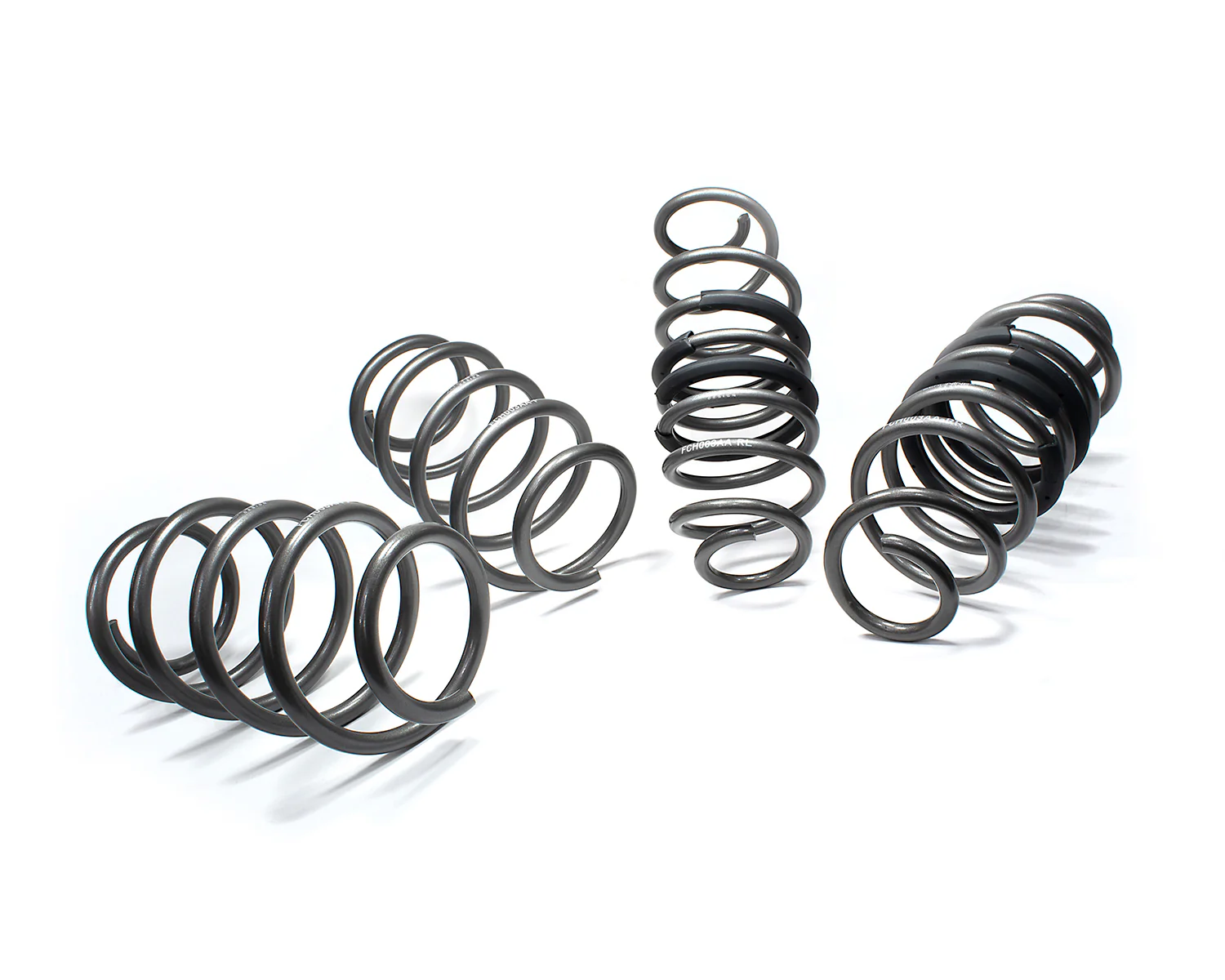

Our 20mm front and rear ride-height reduction gives an optimal aesthetic drop, combined with a handling boost - all whilst still being compliant enough for daily duties.

Price: £124

Ford had eight generations and nearly 50-years of evolution to perfect the Fiesta's fun and sporty characteristics - so it's not surprising that the Mk8 and Mk8.5 offers plenty of smiles per mile.

As always though, the OE rulebook means that the optimal setup for performance and the enthusiast has to be balanced with the mass-market and that's where a set of performance lowering springs, albeit with the right poundage and that maintain the inherent torque-vectoring setup, allow you to lower the vehicle's centre of gravity, enhance turn-in and provide a more responsive overall chassis, without compromising on ride quality - critical, for the numerous owners that use their cars on a daily basis.

Go too low with the OE damper and you'll not only risk front bumper scuffs, you'll also promote 'crashing' and poor dynamic control where there's minimal damper travel left under compression - you'll also have eyes on stalks trying to dodge the potholes that litter the roads - in the UK, certainly.

Our 20mm front and rear ride-height reduction gives an optimal aesthetic drop, combined with a handling boost - all whilst still being compliant enough for daily duties.

#5 BRAKE UPGRADES

#5 BRAKE UPGRADES

Price range: £89-£165

The brakes are definitely one of the areas that the standard car suffers with - and by that, we mean can chomp through brake pads in a blink on track and often feels like there's just not enough braking power, or bite for owners who like to use their car to the full on the road.

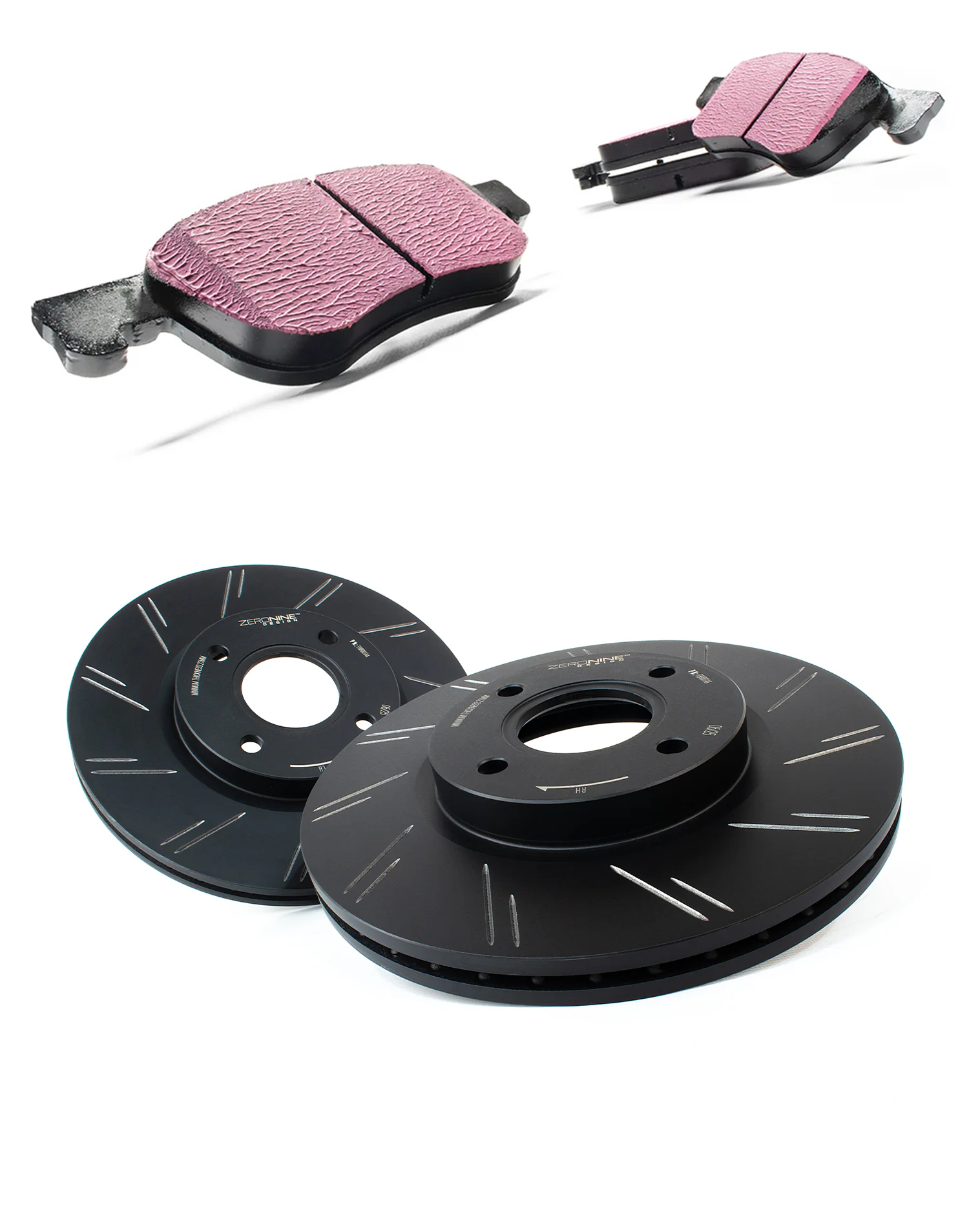

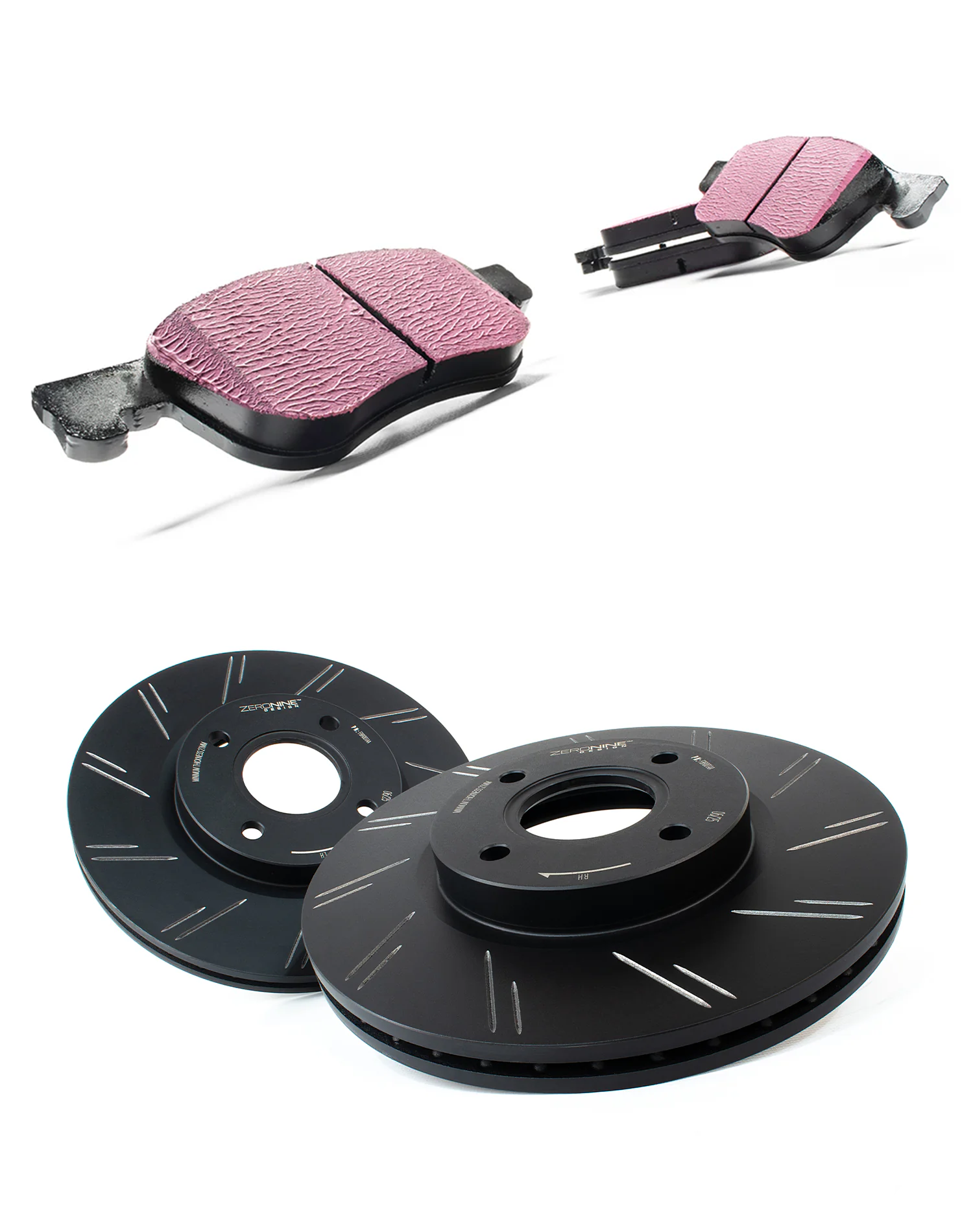

A set of uprated grooved discs and matching performance pads are a relatively cheap and easy way of enhancing the initial bite when covering the brakes - the grooved face of the disc helping to deglaze the pad and promote even pad wear.

Combine this setup with a set of braided brake lines and you'll have a great road setup with better stopping performance on tap... but if you're particularly hard on brakes, or you're venturing out on track, a big brake kit really is the best way forward (and we also more than cater for owners that want the ultimate in stopping performance for this ST regardless of whether that's for the road, or the track)

Price range: £89-£165

The brakes are definitely one of the areas that the standard car suffers with - and by that, we mean can chomp through brake pads in a blink on track and often feels like there's just not enough braking power, or bite for owners who like to use their car to the full on the road.

A set of uprated grooved discs and matching performance pads are a relatively cheap and easy way of enhancing the initial bite when covering the brakes - the grooved face of the disc helping to deglaze the pad and promote even pad wear.

Combine this setup with a set of braided brake lines and you'll have a great road setup with better stopping performance on tap... but if you're particularly hard on brakes, or you're venturing out on track, a big brake kit really is the best way forward (and we also more than cater for owners that want the ultimate in stopping performance for this ST regardless of whether that's for the road, or the track)
